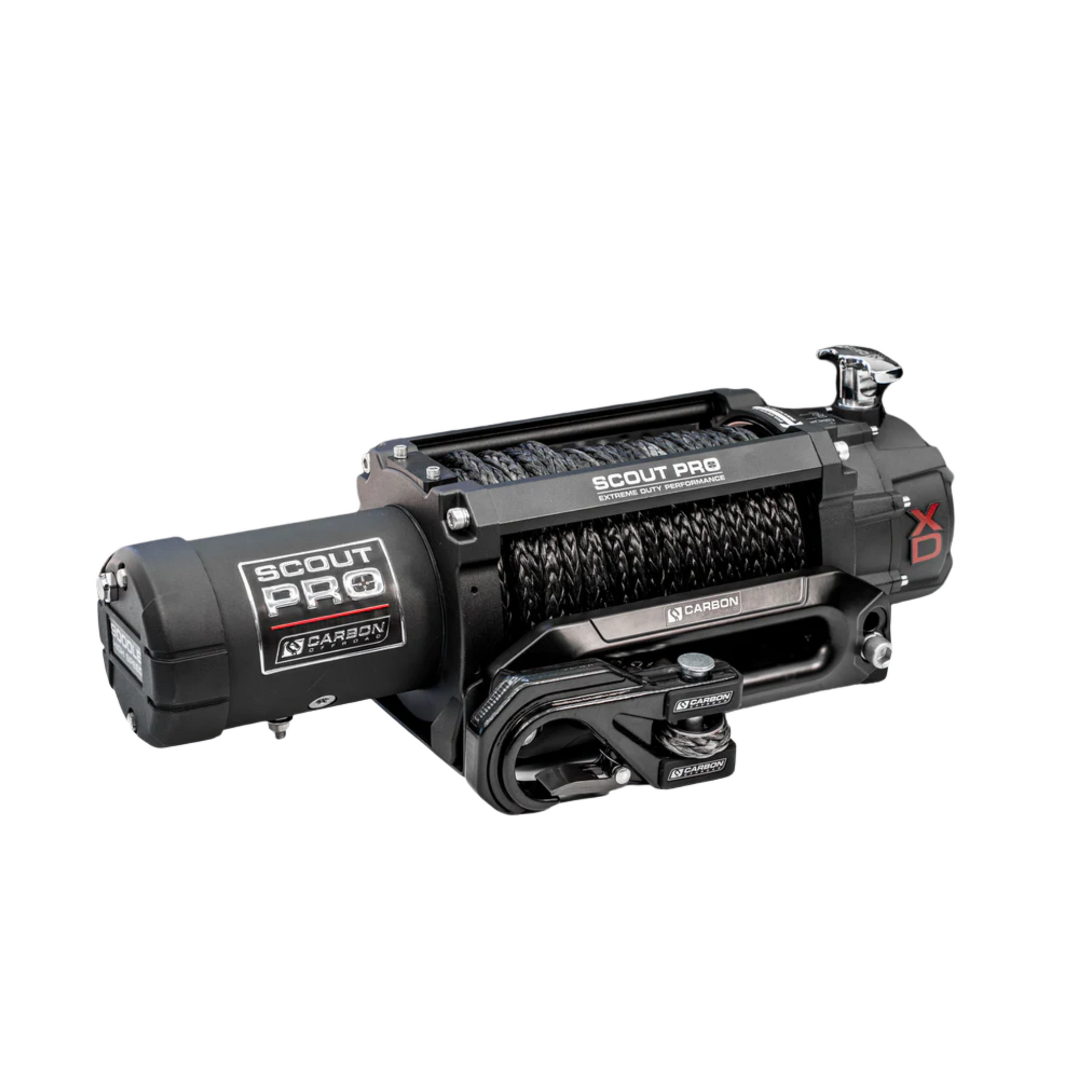

Carbon Scout Pro - 15000lb Winch V3 (6.8Tonne) 12volt
~~Contact us for a shipping Quote, due to being a heavy item we want to get you the best rate possible~~
Carbon Offroad Scout Pro 15K is a powerhouse engineered to bridge the gap between Ute-sized winches and truck-grade brutes.
With a formidable 15,000lb pulling capacity, the Carbon CW-XD15 combines a 7 HP series-wound motor, oversized modulus gearsets, and a heavy-duty solenoid rated 100 amps higher than the 12K’s to deliver relentless pulling power run after run.
Do you haul slide-on campers? Tow heavy trailers through sand? Drive a fully kitted 79 Series, RAM 1500, or Land-Cruiser wagon that tips the scales beyond a 12K’s comfort zone? If your rig needs more muscle without jumping to a 20K truck winch, this is the winch you need.
Packed straight out of the box with premium kit:
- Mega-Pro billet fairlead
- Forged rope thimble
- 24 m of 11 mm high density pre stretched premium UHMWPE rope rated at a whopping 9000kg minimum breaking strain.
The Scout Pro 15K delivers the strength, durability, and confidence you need to conquer serious recoveries and keep the adventure moving.
Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.

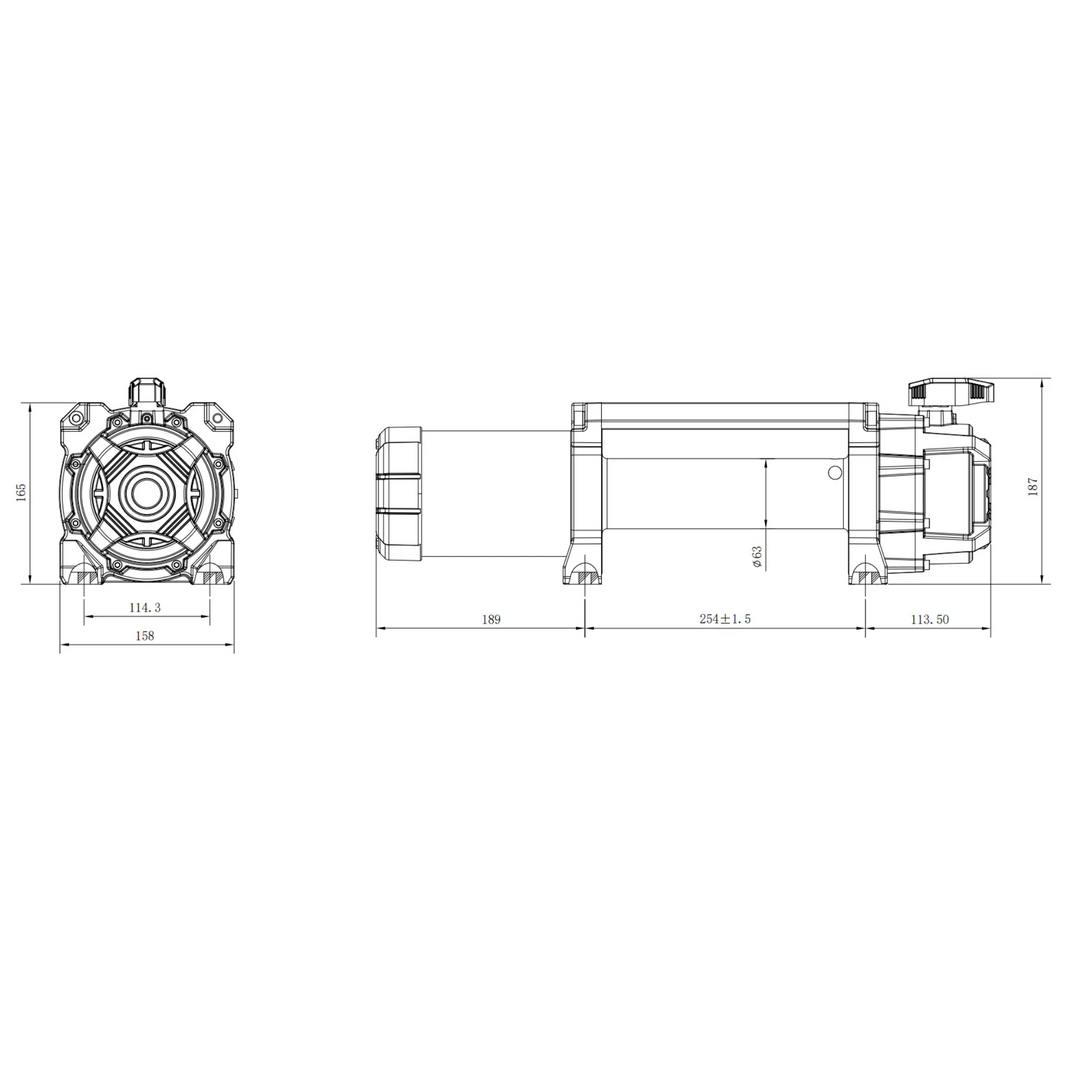

The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
- Part number: CW-XD15
- Rated line pull: 15000 lbs, (6803kg) single-line
- Motor: 12V DC 7 HP series wound motor (24V option available)
- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 218:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 11mm diameter
- Drum Diameter/Length: 63.5mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 535 x 158 x 187mm
- Packing Dimensions (L x W x H): 580 x 200 x 220mm
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7
| e Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current (Amps) | Rated line pull lbs(kgs) |
|---|---|---|---|
| 0 | 27.9(8.5) | 65 | 1/15000(6810) |
| 2000(910) | 11.8(3.6) | 120 | 2/12700(5765) |
| 6000(2720) | 9.5(2.9) | 160 | 3/10770(4890) |
| 10000(4540) | 6.6(2.0) | 215 | 4/9130(4145) |
| 13000(5900) | 4.6(1.4) | 265 | |
| 15000(6818) | 3.6(1.1) |
380 |
